- The 500 kW motor offers 10% increased traction and 5% superior energy recovery.
- A large displacement pump boosts lifting time by 20%. The dual-circuit braking system ensures safety, while the integral rigid frame enhances bending resistance by 40%.
- Front axle oil-gas suspension improves ride comfort, increasing shock isolation efficiency by 35%.

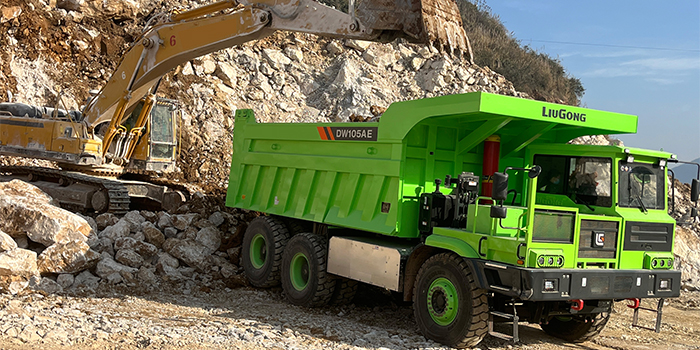

DW105AE
Payload:
70,000 kg
Max. Gross Machine Weight:
109,500 kg
Heaped capacity (SAE 2:1):
43 m?
DW105AE
Unit：
- Metric
- U.S
Product Features
DW105AE
DW105AE
DW105AE
Specifications
| Net Machine Weight | 39,500 kg |
| Payload | 70,000 kg |
| Max. Gross Machine Weight | 109,500 kg |
| Struck Capacity | 36 m3 |
| Heaped capacity (SAE 2:1) | 43 m3 |
| Engine Model | TZ380XSLG500B |
| Rated / Peak Power | 500 kW (671 hp) / 700 kW (939 hp) |
| Rated / Peak Speed | 1,989 / 3,500 rpm |
| Rated / Peak Torque | 2,400 / 4,800 N·m |
| Max. Gradeability | ≥30% |
| Dimension | 6,250×3,400×1,750 mm |
| Total Reduction Ratio | 18.722 |
| Download Brochure 1 Download Brochure 2 |
※For reference only.
