- The full extension length of the main boom is 43 meters, and the boom section is enlarged. The maximum lifting capacity of the full extension boom is 7.45t;
- Equipped with a 7-ton counterweight, the lateral span of the legs is 6.42m, resulting in higher operational stability;
- The brand new 2.55m wide chassis, with an increased height and width of a super large rectangular section frame, fully enhances the ability to withstand lifting, torsion, and bending;
- One click start for boarding operations, making operation more convenient and fast;
- High light LED leg lighting lamp, switch placed in the driver 's cab, more convenient for use at night;
- Frame type aluminum alloy engine hood, pneumatic shock absorption seats, foldable sleeper, quick change rate hook, fully optimized ergonomics.
- Liugong integrates the main valve hydraulic system and a new pilot handle, making user control easy and comfortable.

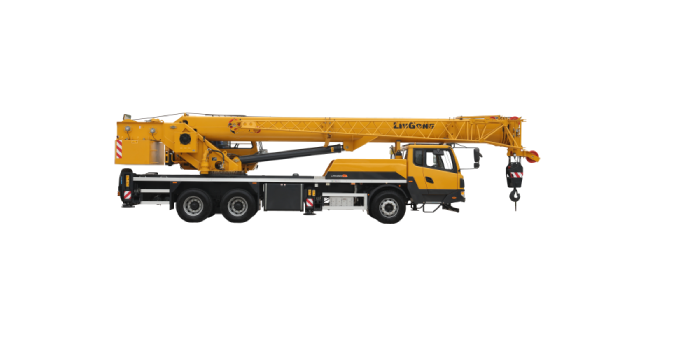

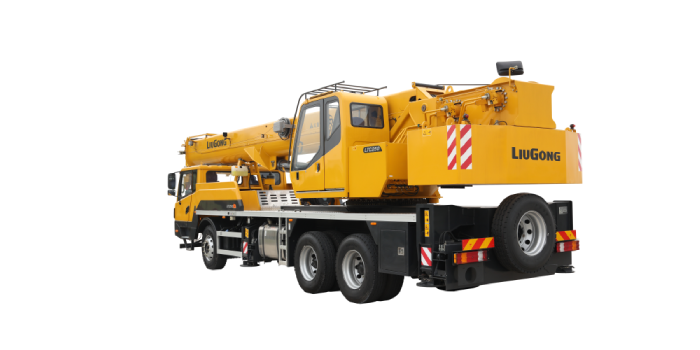

LTC250T5
Max Boom Length (Main Boom+Jib):
49+3 m
Max Rated Lifting Capacity:
25 t
Counterweight:
7t fixed
LTC250T5
Unit：
- Metric
- U.S
Product Features
LTC250T5
LTC250T5
Specifications
| Max. rated lifting capacity | 25 t |
| Dimensions (L x W x H) | 12945x2550x3465 mm |
| The axle distance | 4635+1350 mm |
| The wheel distance | 2080/1865/1865 mm |
| The total weight during driving | 33430 kg |
| Engine model | ISLe290 30 (Euro III) |
| Max. rated power of the engine | 213/2100 kW/(r/min) |
| Max. rated torque of the engine | 1050/1000-1900 N·m/(r/min) |
| Max. travel speed | 80 km/h |
| Min. turning diameter | 21 m |
| Approach and departure angle | 11°/14° |
| Outrigger transversal span | 6.42 m |
| Outrigger longitudinal span | 5.5 m |
| Boom luffing time (lifting/descending) | 40/65 s |
| Boom extension time( extension/retraction) | 98/108 s |
| Max. slewing speed | 2.4 r/min |
| Max. lifting speed: Main winch (No load) | 120 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 120 m/min |
| Download Brochure |
※For reference only.
